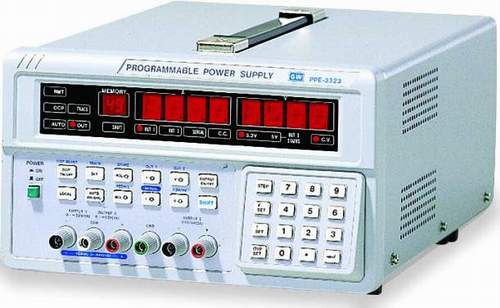

PPE-1323/3323 PROGRAMMABLE D.C. POWER SUPPLY

PPE-1323/3323

PROGRAMMABLE D.C. POWER SUPPLY

. Easy Operation, with UP / DOWN Key . High Resolution：10mV, 1mA . Over Voltage, Over Current Protection (by Software) . Memory store and recall：100 Points ( 50 Points for PPE-3323 ) . Self Test and Software Calibration . Meet UL, CSA, IEC Safety Regulation . High Stability, Low Drift . 4 Digits Display . Auto Step Running with Timer Setting . Single Output ( Triple Output for PPE-3323 ) . Auto Tracking ( PPE-3323 only ) . RS-232 Communication Capability

SPECIFICATIONS
	MODEL	PPE-1323	PPE-3323
OUTPUT	Voltage	0 ~ 32V	0 ~ +32V, 0 ~ -32V, 3.3V/5V Fixed
	Current	0 ~ 3A	0 ~ +3A, 0 ~ -3A, 3A Fixed
	OVP	0 ~ 33V	0 ~ +33V, 0 ~ -33V, OLP

LOAD EFFECT	Voltage	< 6mV	< 6mV
	Current	< 3mA	< 3mA

SOURCE EFFECT	Voltage	< 3mV
	Current	< 3mA

RESOLUTION	Voltage	10mV ( 20mV rating voltage > 36V )
	Current	1mA ( 2mA rating current > 3.5A )
	OVP	10mV ( 20mV rating voltage > 36V )

PROGRAM ACCURACY ( 25 + 5°C )	Voltage	< 0.05% + 25mV ( + 50mV rating voltage > 36 V )
	Current	< 0.2% + 10mA
	OVP	< 2% + 0.6V

RIPPLE & NOISE ( 20Hz ~ 20MHz )	Voltage	Ripple：1mVrms / 3mVp-p Noise：2mVrms / 30mVp-p
	Current	< 3mArms ( < 5mArms rating current > 3.5A )

TEMPERATURE ( 0 ~ 40°C )	Voltage	< 100ppm + 3mV
COEFFICIENT	Current	< 150ppm + 3mA

READBACK RESOLUTION	Voltage	10mV ( 20mV rating voltage > 36V )
	Current	1mA ( 2mA rating current > 3.5A )

READBACK ACCURACY ( 25 + 5°C )	Voltage	< 0.05% + 25mV ( + 50mV rating voltage > 36V）
	Current	< 0.2% + 10mA

RESPONSE TIME
VOLTAGE UP	10% ~ 90%	< 100mS
VOLTAGE DOWN	90% ~ 10%	< 100mS

READBACK TEMPERATURE	Voltage	< 100ppm + 10mV (+20mV rating voltage >36V)
COEFFICIENT	Current	< 150ppm + 10mA

DRIFT	Voltage	< 0.03% + 6mV
	Current	< 0.1% + 6mA

TRACKING OPERATION (PPE-3323)	Tracking Error	< 0.1% + 50mV
	Series Regulation	< 50mV

MEMORY	Store/Recall point 0 ~ 99 ( 0 ~ 49 point for PPE-3323 )

TIMER	Setting Time	1sec ~ 99min
	Resolution	1sec
	Function	for output working loop (Auto Step running)

INTERFACE	GPIB Interface Option

POWER SOURCE	AC 100V/120V/220V/240V±10%, 50/60Hz

ACCESSORIES	Instruction manual x 1, Power cord x 1, GTL-104 x 1 ( x 3 for PPE-3323)

DIMENSIONS & WEIGHT	255(W) x 145(H) x 346(D) mm, Approx. 9.5kg ( 10.0kg for PPE-3323)
